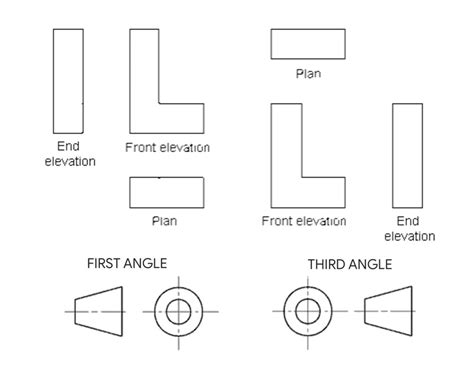

1st Angle 3rd Angle Projection Mastering 1st Angle vs 3rd Angle Projection A Comprehensive Guide Understanding engineering drawings is crucial for anyone involved in design manufacturing or construction A key element in these drawings is the method of projection used to represent threedimensional objects on a twodimensional plane namely 1st angle and 3rd angle projection Knowing which system is being used is critical for accurate interpretation and avoiding costly mistakes Lets dive deep into the differences and master these essential projection techniques What are 1st Angle and 3rd Angle Projections Imagine trying to describe a complex object to someone without a physical model Projection methods provide a standardized way to do just that They use orthogonal rightangled projections to create a set of views typically top front and side that fully depict the objects shape and dimensions 1st Angle Projection In this method the object is positioned in the first quadrant of the projection plane The front view is placed in the upper left corner of the drawing sheet the top view below it and the side view usually to the right of the front view 3rd Angle Projection The object is positioned in the third quadrant The front view is located in the upper right corner the top view below it and the side view to the left of the front view Visualizing the Difference Imagine a simple cube Under 1st angle projection the top view appears directly below the front view while in 3rd angle its positioned below and to the left of the front view This seemingly minor difference in placement fundamentally alters the way views are arranged See the visual comparison below Insert image comparing a cube in 1st angle and 3rd angle projection Label the views clearly How to Differentiate and Interpret Drawings The key to understanding which projection system is used is examining the placement of the views A simple rule of thumb if the top view is to the left of the front view its likely 3rd 2 angle if its to the right its most probably 1st angle However dont rely solely on this as other drawings might deviate slightly Always consult the drawings title block for a definitive indication of the projection system employed Practical Examples Mechanical Engineering Machine part diagrams frequently utilize 3rd angle projection especially in North America and many other countries Architectural Drafting While varying architectural drawings often employ 3rd angle projection for consistent representation of building plans and elevations Product Design The choice of projection is often based on industry standards and the specific needs of the project HowTo Interpreting a Drawing 1 Identify the Title Block This crucial element usually includes a note specifying the projection method eg 3rd Angle Projection 2 Analyze View Placement Carefully examine the location of the top front and side views relative to each other 3 Look for Standard Symbols Some symbols might indicate the specific projection system but these are not always present 4 CrossReference If unsure verify the projection system with other references or contact the designer Key Points Summarized Standardization Projection systems ensure universal understanding of technical drawings Accuracy Incorrect interpretation leads to errors in manufacturing Consistency Following the correct projection method is crucial for precision in various fields Context Always check the drawings title block or specifications for the correct system Frequently Asked Questions FAQs 1 Why are there different projection systems Different countries and industries have adopted various systems for consistency and clarity There is historical precedence for both but 3rd angle is more commonly used globally 2 What if a drawing doesnt specify the projection system Its essential to contact the 3 designer or source for clarification If the context of the drawing is known this might provide clues 3 How do I convert a drawing from one projection system to another Conversion requires careful analysis and redrawing Software tools can be used for accurate conversions 4 What are the consequences of using the wrong projection system Incorrect interpretation can lead to manufacturing errors wasted materials and delays especially in highprecision industries 5 Is one system inherently better than the other Neither is inherently better the critical factor is consistency within a given project and across industry standards By understanding 1st angle and 3rd angle projection you gain a powerful tool for interpreting technical drawings and contribute to more efficient and accurate design manufacturing and construction processes Remember to always doublecheck the drawing specifications for clarity and avoid costly mistakes 1st Angle vs 3rd Angle Projection A Comparative Analysis of Engineering Drawing Standards Engineering design necessitates precise and unambiguous communication of three dimensional objects in twodimensional representations Two dominant systems of orthographic projection 1st Angle and 3rd Angle govern how these representations are achieved Understanding the nuances of each system is crucial for successful collaboration in the global engineering community This paper investigates the historical context practical application and key differences between 1st Angle and 3rd Angle projection ultimately illuminating their impact on design and manufacturing processes Historical Overview and Standardization The development of projection methods for technical drawings is intrinsically linked to the evolution of engineering and manufacturing practices The standardization of 1st Angle and 3rd Angle projection emerged in the 19th century largely driven by the need for consistent and easily interpretable representations Early industrialization necessitated the ability to clearly convey complex geometries across geographical boundaries and within diverse design teams While both systems effectively translate 3D forms into 2D representations they differ 4 fundamentally in the placement of views relative to the object being depicted Understanding the Principles of Orthographic Projection Orthographic projection relies on projecting points from a threedimensional object onto a series of twodimensional planes These planes typically perpendicular to one another represent the different views of the object The key aspect influencing 1st and 3rd Angle is the relationship between the object and the projection planes Crucially this relationship defines the placement of the views and thus the interpretation of the objects geometry 1st Angle Projection In 1st Angle projection the object is positioned in the first quadrant of the coordinate system The front view is drawn first followed by the top and side views The views are oriented in a way that they are all in the first quadrant This leads to a unique configuration where the relationship between the views is distinctly different from 3rd angle projection Figure 1 Example of 1st Angle Projection Insert a visual representation here showing a 1st Angle projection of a simple object eg a block 3rd Angle Projection In 3rd Angle projection the object is placed in the third quadrant The top view is placed above the front view and the side view to the right of the front view The sequence is reversed relative to the object compared to the firstangle method This approach provides a different visual arrangement of the views Figure 2 Example of 3rd Angle Projection Insert a visual representation here showing a 3rd Angle projection of the same object Comparative Analysis of 1st and 3rd Angle Projection A fundamental difference lies in the relative position of the views In 1st Angle views are arranged as if the observer were looking directly at the object and then using the projection planes This method generally requires careful interpretation of the object from an imagined position within the object In contrast 3rd Angle projection presents a more direct correlation between the view and the relative position of the view within the plane Practical Implications and Applications Global Communication Standardization across different countries is vital for international collaborations and engineering projects The adoption of either 1st Angle or 3rd Angle ensures shared comprehension of design specifications 5 Manufacturing and Fabrication Proper interpretations are critical for manufacturing processes misinterpretations can lead to costly errors CAD Software CAD ComputerAided Design software utilizes either 1st Angle or 3rd Angle projection impacting the rendering and manipulation of the drawings Archiving Standardized methods facilitate effective recordkeeping and retrieval of engineering data Key Differences Summarized Feature 1st Angle Projection 3rd Angle Projection Object Position First Quadrant Third Quadrant View Placement Relative orientation Opposite orientation Global Adoption Primarily used in some countries Predominant globally Conclusion The choice between 1st Angle and 3rd Angle projection is largely a matter of established industry practice and regional norms While both systems are equally valid for representing threedimensional objects in two dimensions the international adoption of 3rd Angle projection has become the standard practice in most engineering disciplines This preference emphasizes the importance of global communication in engineering and the need for standardized conventions Advanced FAQs 1 How do I convert a 1st Angle drawing to a 3rd Angle drawing 2 What are the specific benefits of using 3rd Angle Projection in international collaborations 3 Are there any specialized applications where 1st Angle projection is still prevalent 4 How do CAD software packages handle the differences between 1st and 3rd Angle projection 5 What are the implications of choosing the wrong projection system for a particular engineering project References Insert relevant academic journal articles industry standards and any other supporting documentation here Note This is a template To complete the article you need to 1 Insert Figures 1 and 2 These are crucial for visual understanding 6 2 Provide detailed references from reputable sources 3 Expand on the practical implications with concrete examples and data where available 4 Elaborate on the FAQs with comprehensive answers This expanded structure will allow you to create a wellresearched and informative academic article on the subject Remember to cite all sources properly according to a consistent academic style guide eg APA MLA
