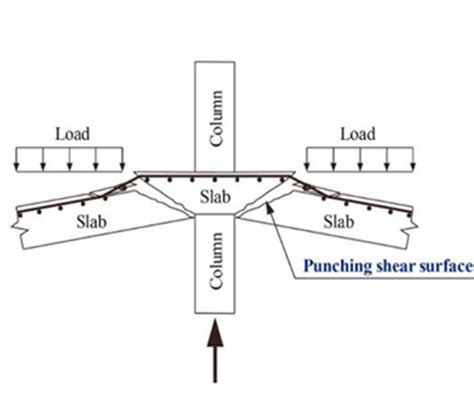

Checking Punching Shear Strength By The Aci Code Checking Punching Shear Strength by the ACI Code A Comprehensive Guide Punching shear a critical failure mode in reinforced concrete structures occurs when a concentrated load causes failure around a column or wall Ensuring adequate punching shear capacity is vital for structural integrity This guide provides a stepbystep approach to checking punching shear strength according to the ACI 318 Building Code Requirements for Structural Concrete ACI 318 Punching Shear Concrete Design Shear Strength Structural Engineering Reinforced Concrete Column Design Wall Design Punching Shear Capacity Critical Section ACI Code Punching Shear Calculation 1 Understanding Punching Shear and the ACI Code Provisions ACI 318 provides detailed provisions for calculating punching shear resistance The code focuses on determining the critical perimeter where shear stresses are highest and then verifying that the calculated shear strength exceeds the applied shear force This usually involves determining a critical perimeter around a column or concentrated load at a specific distance from the edge of the column The shear force is typically calculated from the factored loads 2 Determining the Critical Section for Punching Shear The location of the critical section is crucial for accurate analysis ACI 318 suggests considering the critical perimeter at a distance d2 from the face of the column or loaded area where d is the effective depth of the slab Determining d Effective depth d is the distance from the extreme compression fiber to the centroid of the tensile reinforcement Example For a slab with a total thickness of 10 inches and 1inch diameter reinforcing bars placed 15 inches from the bottom the effective depth d would be 10 15 05 8 inches Critical Perimeter The critical perimeter is the perimeter of the column plus twice the distance d2 on each side For a rectangular column this is calculated as 2b d 2h 2 d where b and h are the column dimensions 3 Calculating the Nominal Shear Strength vn The nominal shear strength vn represents the theoretical capacity of the concrete to resist shear ACI 318 provides equations to determine this value The most common equation is vn fc Where vn nominal shear strength psi or MPa reduction factor for lightweight concrete 10 for normalweight concrete fc specified compressive strength of concrete psi or MPa 4 Calculating the Factored Shear Stress vu Factored shear stress vu represents the shear stress acting on the critical section due to the factored loads Its calculated as vu Vu bo d Where vu factored shear stress psi or MPa Vu factored shear force at the critical section lbs or kN bo perimeter of the critical section inches or mm d effective depth of the slab inches or mm 5 Checking the Punching Shear Capacity Once youve determined both vn and vu compare them The section is safe against punching shear if vu vn Where resistance factor typically 075 for shear 6 StepbyStep Example Calculation Lets consider a 12inch thick slab supporting a 12 x 12 column with a factored shear force Vu of 100 kips The concrete strength fc is 4000 psi The reinforcing bars are 1 inch in diameter placed 15 inches from the bottom 1 Effective depth d d 12 15 05 10 inches 3 2 Critical perimeter bo bo 4 12 102 88 inches 3 Nominal shear strength vn vn 10 4000 psi 6325 psi 4 Factored shear stress vu vu 100000 lbs 88 in 10 in 1136 psi 5 Checking capacity vn 075 6325 psi 474 psi Since vu 1136 psi vn 474 psi the section does not have adequate punching shear capacity Additional reinforcement would be required 7 Best Practices and Common Pitfalls Accurate Load Calculations Ensure accurate determination of factored loads including live dead and other relevant loads Proper Effective Depth Correctly calculate the effective depth d considering the concrete cover and bar diameter Critical Perimeter Definition Accurately define the critical perimeter Material Properties Utilize appropriate concrete compressive strength fc values Lightweight Concrete Apply the appropriate reduction factor for lightweight concrete Consider Shear Reinforcement If the section fails punching shear design shear reinforcement such as shear studs or headed bars to increase the capacity 8 Using Software for Punching Shear Design Many structural analysis software packages can automate punching shear calculations reducing the risk of manual errors These programs typically incorporate the ACI 318 code provisions 9 Summary Checking punching shear capacity according to ACI 318 involves determining the critical section calculating the factored shear stress vu and comparing it to the design shear strength vn If vu exceeds vn additional reinforcement is needed Accurate load calculation precise determination of the critical section and proper use of material properties are crucial for successful design 10 FAQs 1 What is the difference between oneway and twoway punching shear Oneway punching shear occurs in slabs supported on only one side of the column while twoway punching shear is seen in slabs supported on all sides Twoway shear is more common and is the focus 4 of the ACI 318 code provisions discussed here 2 How does shear reinforcement impact punching shear capacity Shear reinforcement such as headed bars or shear studs significantly increases the punching shear capacity of the slab allowing for thinner slabs or heavier loads 3 Can I use a simplified method to check punching shear While some simplified methods exist they are often conservative and might not be suitable for all scenarios Following the detailed ACI 318 procedures is generally recommended for accurate and reliable results 4 What happens if punching shear capacity is insufficient If the punching shear capacity is insufficient the slab will fail prematurely under the concentrated load potentially leading to collapse Strengthening or redesign is necessary 5 How can I account for the effect of openings near the column in the punching shear design Openings near the column reduce the effective perimeter and increase the shear stress The ACI code doesnt have specific guidance for openings Specialized analysis techniques may be required to adequately account for their effects You may need to consult structural analysis software capable of handling this more complex geometry
